Exercise 2 – Adding TLS to the MQTT connection

Now we want to encrypt the MQTT connection that we set up in the previous exercise by implementing TLS. We will also cover how to verify the broker’s authenticity.

Recall from lesson 3 that TLS can provide :

Confidentiality (communication cannot be read by third parties)
Integrity (communication cannot be altered by third parties)
Authenticity (verifies the identity of the client and server).

You can read more about how TLS provides authentication, confidentiality, and integrity here.

In this exercise, we will learn how to encrypt communication between the device (MQTT client) and the MQTT broker. Then we will get the root certificate of the MQTT broker and flash it to the device, so it can use it to verify the broker’s authenticity. We will also show how to encrypt the communication between the MQTT broker and the other MQTT client (running on your PC).

The MQTT helper library uses the TLS credentials subsystem of the Zephyr socket API to provision the credentials on the device at run-time. So we simply have to enable and configure this feature and store the server certificate from the MQTT broker somewhere in the application directory so the MQTT helper library can find it.

Note

If ultra-low power and data cost are a high priority in your design, please be aware that TLS slightly increases the overhead of the data sent over the air which impacts power consumption and data costs.

Exercise Steps

1. In the GitHub repository for this course, go to the base code for this exercise, found in l4/l4_e2.

2. Enable TLS support in the MQTT library.

2.1 Enable TLS for the MQTT library by enabling CONFIG_MQTT_LIB_TLS in prj.conf.

CONFIG_MQTT_LIB_TLS=y

Copy

CONFIG_MQTT_LIB_TLS=y

Kconfig

This will automatically change the broker port CONFIG_MQTT_HELPER_PORT that the MQTT helper library uses to 8883, which is the standard TLS port for MQTT.

2.2 Enable TLS-related Kconfigs.

CONFIG_MBEDTLS=y
CONFIG_TLS_CREDENTIALS=y

Copy

CONFIG_MBEDTLS=y
CONFIG_TLS_CREDENTIALS=y

Kconfig

CONFIG_MBEDTLS: Enables the mbedTLS library.
CONFIG_TLS_CREDENTIALS: Enables the TLS credentials subsystem of the socket API, which we will use to store the credentials on the device.

2.3 Configure the security tag for the certificate.

Configure the security tag for the certificate by adding the following line

CONFIG_MQTT_HELPER_SEC_TAG=24

Copy

CONFIG_MQTT_HELPER_SEC_TAG=24

Kconfig

CONFIG_MQTT_HELPER_SEC_TAG: Security tag where the TLS credentials are stored on the device

2.4 Enable the modem key management library in order to store the server certificate in the modem and use it for verification.

CONFIG_MODEM_KEY_MGMT=y

Copy

CONFIG_MODEM_KEY_MGMT=y

Kconfig

2.5 In main.c, include the header file for the modem key management library.

#include <modem/modem_key_mgmt.h>

Copy

#include <modem/modem_key_mgmt.h>

4. Obtain the certificate from the MQTT broker.

4.1 Using a browser, visit the MQTT broker main page, in this case: https://mqtt.nordicsemi.academy/ and download the mqtt.nordicsemi.academy.chain file in PEM format.

Store the certificate in the directory l4_e2/credentials with the name ca-cert.pem.

Important

Make sure to change the name to ca-cert.pem.

5. Generate an include file from the certificate and include it in the application.

5.1 Generate an include file from the certificate.

We want to generate include files of the certificate and store them in the build output. Create the directory

In CMakeLists.txt, add the following lines

set(gen_dir ${CMAKE_CURRENT_BINARY_DIR}/certs)
zephyr_include_directories(${gen_dir})
generate_inc_file_for_target(app credentials/ca-cert.pem ${gen_dir}/ca-cert.pem)

Copy

set(gen_dir ${CMAKE_CURRENT_BINARY_DIR}/certs)
zephyr_include_directories(${gen_dir})
generate_inc_file_for_target(app credentials/ca-cert.pem ${gen_dir}/ca-cert.pem)

CMake

This creates the certs directory, which you can find after building the application in l4_e2/build/l4_e2/certs.

The next line includes this directory in the application, and the last line generates the include file for the application using the source file we downloaded in the previous step, and places it in l4_e2/build/l4_e2/certs with the name ca-cert.pem.

5.2 Include the certificate in the application.

Include the certificate in the application by adding the following line to main.c

static const unsigned char ca_certificate[] = {
#include "ca-cert.pem"
};

Copy

static const unsigned char ca_certificate[] = {
#include "ca-cert.pem"
};

6. Define certificate_provision() to store the certificates in the modem.

In this function, we write the certificate to the modem, using modem_key_mgmt_write(), which has the following signature

sec_tag – The security tag associated with the certificate, in our case CONFIG_MQTT_HELPER_SEC_TAG.
cred_type – The type of credential we are storing in the modem. To authenticate the server, we use MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN, which is the root certificate of the server issues by the Certificate Authorities.
buf – The actual certificate, which we stored in the ca_certificate.
len – Length of the certificate.

It is important not to rewrite the same certificate every time we boot up the application, to avoid wearing out the flash. Therefore, we are checking if a certificate exists, using modem_key_mgmt_exists(), and if so, checking if it is identical to the one we want to write, using modem_key_mgmt_cmp(). If this is the case, we don’t need to write the certificate to the modem.

Add the following lines to the certificate_provision() function to store the certificate in the modem.

int certificate_provision(void)
{
	int err = 0;
	bool exists;

	err = modem_key_mgmt_exists(CONFIG_MQTT_HELPER_SEC_TAG,
				    MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				    &exists);
	if (err) {
		LOG_ERR("Failed to check for certificates err %d\n", err);
		return err;
	}

	if (exists) {
		err = modem_key_mgmt_cmp(CONFIG_MQTT_HELPER_SEC_TAG,
					 MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				   	ca_certificate,
				   	sizeof(ca_certificate) - 1);
		LOG_INF("Comparing credentials: %s", err ? "Mismatch" : "Match");
		if (!err) {
			return 0;
		}
	}

	err = modem_key_mgmt_write(CONFIG_MQTT_HELPER_SEC_TAG,
				   MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				   ca_certificate,
				   sizeof(ca_certificate) - 1);
	if (err) {
		LOG_ERR("Failed to provision CA certificate: %d", err);
		return err;
	}

	return err;
}

Copy

int certificate_provision(void)
{
	int err = 0;
	bool exists;

	err = modem_key_mgmt_exists(CONFIG_MQTT_HELPER_SEC_TAG,
				    MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				    &exists);
	if (err) {
		LOG_ERR("Failed to check for certificates err %d\n", err);
		return err;
	}

	if (exists) {
		err = modem_key_mgmt_cmp(CONFIG_MQTT_HELPER_SEC_TAG,
					 MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				   	ca_certificate,
				   	sizeof(ca_certificate) - 1);
		LOG_INF("Comparing credentials: %s", err ? "Mismatch" : "Match");
		if (!err) {
			return 0;
		}
	}

	err = modem_key_mgmt_write(CONFIG_MQTT_HELPER_SEC_TAG,
				   MODEM_KEY_MGMT_CRED_TYPE_CA_CHAIN,
				   ca_certificate,
				   sizeof(ca_certificate) - 1);
	if (err) {
		LOG_ERR("Failed to provision CA certificate: %d", err);
		return err;
	}

	return err;
}

7. Store the certificate in the modem while the modem is in offline mode

To use any cryptographic functions in the modem, the application must provision the security credentials to the modem. To be able to provision credentials, the modem must be in offline mode.

This is why it is important to call certificate_provision() in modem_configure(), right after initializing the nRF Modem library when the modem is still in offline mode.

Add the following code snippet in the main.c file.

	err = certificate_provision();
	if (err) {
		LOG_ERR("Failed to provision certificates");
		return err;
	}

Copy

	err = certificate_provision();
	if (err) {
		LOG_ERR("Failed to provision certificates");
		return err;
	}

8. Build the exercise and flash it on your board.

9. Examine the log output.

On a successful connection to an LTE network and connection to the MQTT broker, you should see an output similar to the one below.

*** Booting nRF Connect SDK *
[00:00:00.294,250] <inf> Lesson4_Exercise2: Initializing modem library
[00:00:00.562,438] <inf> Lesson4_Exercise2: Connecting to LTE network
[00:00:01.589,202] <inf> Lesson4_Exercise2: RRC mode: Connected
[00:00:05.935,485] <inf> Lesson4_Exercise2: Network registration status: Connected - roaming
[00:00:05.935,577] <inf> Lesson4_Exercise2: Connected to LTE network
[00:00:08.415,283] <inf> Lesson4_Exercise2: Connected to MQTT broker
[00:00:08.415,344] <inf> Lesson4_Exercise2: Hostname: mqtt.nordicsemi.academy
[00:00:08.415,374] <inf> Lesson4_Exercise2: Client ID: nrf-355025930008030
[00:00:08.415,374] <inf> Lesson4_Exercise2: Port: 8883
[00:00:08.415,405] <inf> Lesson4_Exercise2: TLS: Yes
[00:00:08.415,435] <inf> Lesson4_Exercise2: Subscribing to devacademy/subscribe/topic
[00:00:08.550,384] <inf> Lesson4_Exercise2: Subscribed to devacademy/subscribe/topic with QoS 0
[00:00:11.370,697] <inf> Lesson4_Exercise2: RRC mode: Idle

Terminal

Testing

We will basically follow the same test procedure we used in Exercise 1, except this time we will have to configure the client to use TLS and configure it to use the server root certificate issued by the certificate authority.

10. In MQTT Explorer, add a new connection and set it up as shown in the illustration below. Note that the port number changed to 8883:

11. Add the server (MQTT broker) root certificate (ca-cert.pem) by clicking on the advanced button.

Click on CERTIFICATES:

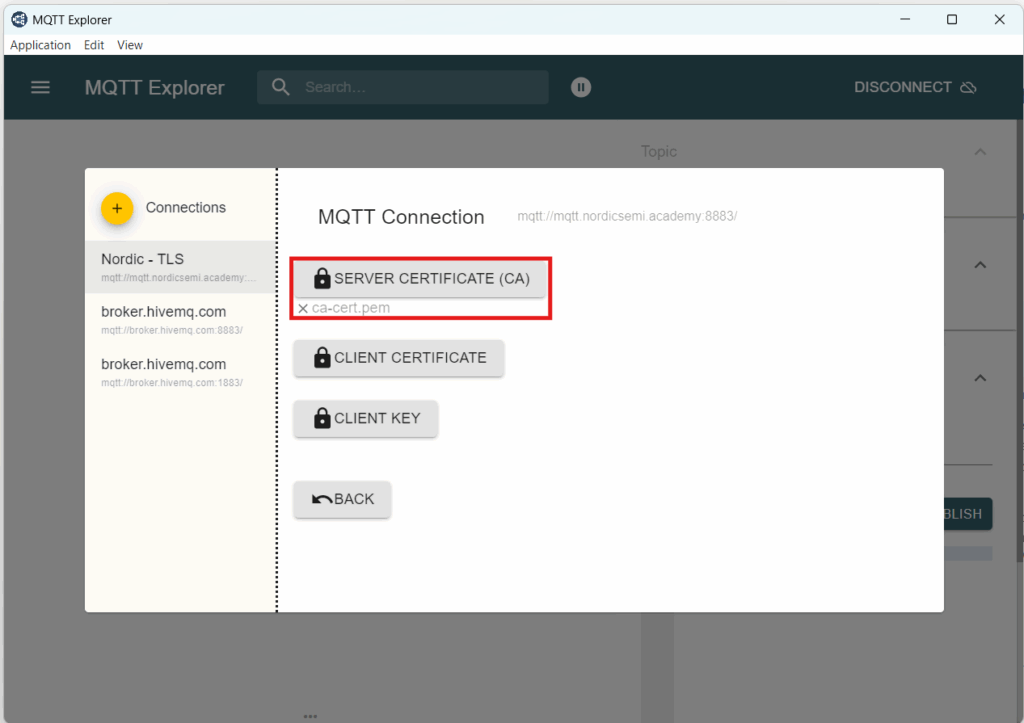

Then select SERVER CERTIFICATE (CA) and select the .pem file we downloaded earlier.

12. Add the topic that the nRF91 Series device will publish to.

This was defined in the Kconfig CONFIG_MQTT_SAMPLE_PUB_TOPIC, in our case "devacademy/publish/topic“

After adding the certificate click BACK, so you get to the window like below, and type in the MQTT topic the device will publish to under Topic. Then select ADD.

Click back again, and make sure to save the connection settings by selecting SAVE.

13. Press CONNECT to establish a connection with the MQTT broker.

Then repeat the last two steps of the previous exercise to check that the communcation is working by controlling the LED’s and being noified on button pushes on the device.

The functionality of this exercise is identical to the previous one, except for the fact that communication now is over TLS so it ensures confidentiality, integrity of the data sent over the network, and authentication of the server.

The solution for this exercise can be found in l4/l4_e2_sol.
