In this exercise, we will program a simple application based on the blinky
sample to toggle an LED on our board. Again, any supported Nordic Semiconductor development board will work (nRF54, nRF53, nRF52, nRF70, or nRF91 Series). The idea is to make sure that all the tools needed to build and flash a sample are set up correctly. The focus is to learn how to create an application from a template “Copy a sample”, build the application, and flash it on a Nordic-powered board.
Basically, we will walk you through the three bullet points below:
1. Create a folder close to your root directory that will hold all the exercises that we will be working on throughout this course.
We will create that folder on the C drive in C:\myfw\ncsfund.
Avoid storing your applications in locations with long paths, as the build system might fail on some operating systems (Windows) if the application path is too long. Also, avoid using whitespaces and special characters in the path.
2. In VS Code, click on the nRF Connect Extension icon. In the WELCOME View, click on Create a new application.
3. In the Create new application, select Copy a sample
You will be presented with three options: Create a blank application will create a blank application with an empty main()
function. While the Copy a sample will present you all the templates “samples” that come from the different modules in nRF Connect SDK and enable you to create an application based on a template. Note that if you have multiple SDK versions installed on your machine, you will be prompted to select which SDK version to copy a sample from. The Browse application index (out of scope for this course) is to copy a revision of an existing out-of-tree application compatible with the nRF Connect SDK from the online application index and set up a west workspace repository around it.
The SDK contains a rich set of templates. In the context of templates, Samples are simple and showcase a single feature or library (e.g. SHA256 sample, UART sample, PWM sample, blinky sample, etc..), while Applications are complex and include a variety of libraries to implement a specific use case (e.g. Asset tracker application, Keyboard application, Mouse application).
3.1 Type blinky in the search field and select the Blinky Sample. The Blinky sample blinks LED1 on your board indefinitely.
We will base our first application on the Blinky sample. The Blinky sample comes from the Zephyr module in nRF Connect SDK. That is why you see the zephyr
name in the sample path: zephyr\samples\basic\blinky
.
Through the icons , we can access the in-tree sample (inside the SDK installation directory) , online documentation of the sample, and the github of the sample respectively.
Through the icons , we can filter samples/applications based on the module they come from (nrf, zephyr ,etc..) and supported hardware. Note that the supported hardware is not always accurate as it relies on samples explicitly listing the supported hardware, which is not the case for all samples.
3.2 Input the full path for where you want the application to be stored.
1. Select where you want to store your application. Input the directory you created in step 1 (for example: C:\myfw\ncsfund\
).
2. Name your application l1_e2
. This is the naming convention we will use for exercises throughout this course. Note that this will create a folder for your application called l1_e2
.
When you have input the full path, press enter.
VS Code will ask if you want to open the application in the same VS Code instance or open a new VS Code instance. Select Open to open the application in the same VS Code instance.
This will make a copy of the template selected “Blinky sample”, store it in the application directory you specified, and add an unbuilt application to VS Code as shown below:
nRF Connect for VS Code might show some error squiggles of headers files not found for an unbuilt application. These usually appear in the PROBLEMS tab. Please ignore these error squiggles at this stage. These errors will automatically be resolved once you add and build a configuration (next step).
4. Add a build configuration.
One of the many advantages of the nRF Connect SDK is the high decoupling between an application source code and the software configuration/hardware description, making it extremely easy to switch the build for a new hardware or software configuration.
This step will specify which development board or custom board (hardware) we want to build the application for. We will also select the software configuration (*.conf
and possible devicetree overlays) to be used in the build.
What you set in the Add Build configuration controls what is passed to the underlying command-line tool, west.
In the APPLICATIONS view, under the application name, click on Add Build Configuration.

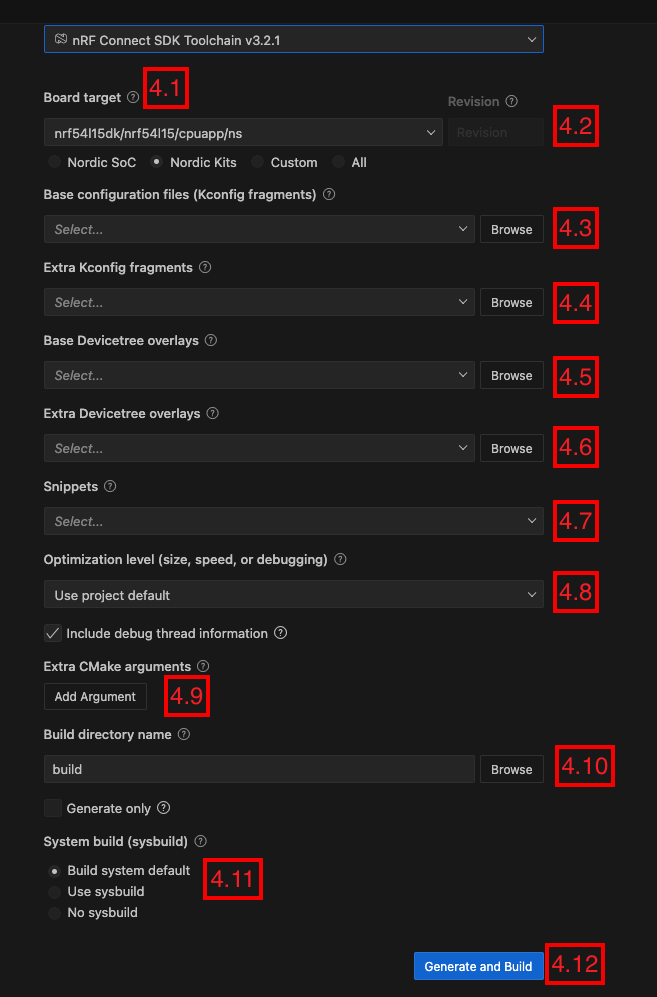

This will open the Add Build Configuration window shown below:
The first thing to notice is that the GUI will inform you about the SDK/toolchain version that will be used to build the application. Ensure it corresponds to the SDK/toolchain you intend to use, along with the SDK version from which you copied the sample from. If it doesn’t, click the arrow to select the correct version.
4.1. Using the Board target, choose the board you want to flash your application to. See the table below for an overview of board targets for Nordic devices.
Device | Board target |
---|---|
nRF54L15 DK* | nrf54l15dk/nrf54l15/cpuapp/ns |
nRF5340 DK | nrf5340dk/nrf5340/cpuapp/ns |
nRF52840 DK | nrf52840dk/nrf52840 |
nRF52833 DK | nrf52833dk/nrf52833 |
nRF52 DK | nrf52dk/nrf52832 |
nRF9160 DK | nrf9160dk/nrf9160/ns |
nRF9161 DK* | nrf9161dk/nrf9161/ns |
nRF9151 DK* | nrf9151dk/nrf9151/ns |
Thingy:91 X | thingy91x/nrf9151/ns |
Thingy:91 | thingy91/nrf9160/ns |
Thingy:53 | thingy53/nrf5340/cpuapp/ns |
nRF7002 DK* | nrf7002dk/nrf5340/cpuapp/ns |
*The nRF54L15 DK and the Thingy:91 X are supported in nRF Connect SDK v2.8.0 and higher.
*The nRF7002 DK and nRF9161 DK are supported in nRF Connect SDK v2.5.0 and higher.
*The nRF9151 DK is supported in nRF Connect SDK v2.6.0 and higher.
The nRF54L15 PDK v0.8.1 is functionally equivalent to a DK. Use the following board targets for this board:
nrf54l15dk/nrf54l15/cpuapp/ns
(with TF-M)
nrf54l15dk/nrf54l15/cpuapp
(without TF-M)
In the screenshot, we chose the nRF52833 DK by specifying its board target, nrf52833dk/nrf52833
.
4.2. The board Revision is usually written on a sticker on the board with the format X.X.X. However, this field is optional and only applicable if the board has multiple revisions (like the nRF9160 DK). By setting it to blank, the build system selects the default version set in the board definition.
We will keep the default build configuration for the rest. However, it’s important to understand the role of each of these configurations.
4.3. The Base configuration files. Depending on the template you chose in Step 3, you will be presented with at least one base application configuration file prj.conf
. Some templates contain more than one application configuration file (eg: prj.conf
, prj_minimal.conf
, prj_cdc.conf
). These different configurations, if found in the template, are explained in the template documentation. The blinky template has only one option. This is equivalent to FILE_SUFFIX
(and CONF_FILE
) in west
.
4.4. The Extra Kconfig fragments field will list the Kconfig fragments available in the template or added to the application folder. These are modifiers to the application configuration file (covered in Lesson 3). The blinky template has none. This is equivalent to EXTRA_CONF_FILE
in west
.
4.5. The Base Devicetree overlays field will list the Devicetree overlays that are available in the template or have been added to the application folder. These are modifiers to your hardware description (covered in Lesson 3). The blinky template has none. This is equivalent to DTC_OVERLAY_FILE
in west
.
4.6. The Extra Devicetree overlays. It provides additional, custom devicetree overlay files to be “mixed in” with the base devicetree overlay file This is equivalent to EXTRA_DTC_OVERLAY_FILE
in west
.
4.7 The Snippets. Snippets combine both software configuration (Kconfig) and hardware configuration (Devicetree) in one bundle. There are several snippets in the SDK.
4.8. The Extra CMake arguments field allows you to pass arguments to the build system if needed. We will leave that blank for this demo.
4.9 The Build directory name field gives you the option to manually name the build directory where the final binary files and temporary build files will be stored. We will leave this to be the default name specified by the tool, which is build
or build_1
if you have already built one application before.
4.10 Optimization level(size, speed, or debugging). We have four options here.
CONFIG_DEBUG_THREAD_INFO="y"
and CONFIG_DEBUG_OPTIMIZATIONS="y"
CONFIG_SPEED_OPTIMIZATIONS="y"
CONFIG_SIZE_OPTIMIZATIONS="y"
In this exercise, we will leave the option to Use project default. However, it’s important to remember to use Optimize for debugging (-Og) if you plan to debug your application.
Leave the Build after generating configuration option enabled to trigger the build process after clicking the Build Configuration button.
4.11 Starting from nRF Connect SDK v2.8.0, Sysbuild is enabled by default. Sysbuild is of importance when your application has multiple images.
4.12 Click the Build Configuration button to create the configuration and initiate the build process.

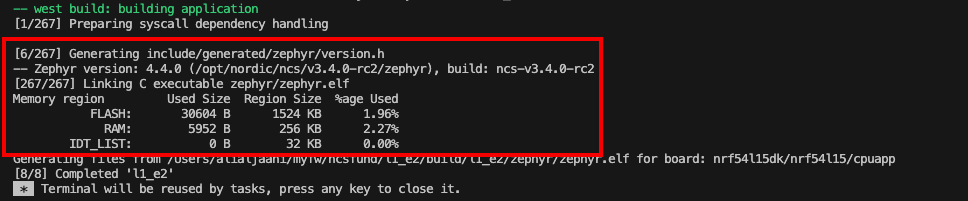

The build process will take some time to finish. Open the nRF Connect Terminal (View->Terminal) to see the progress of the build.

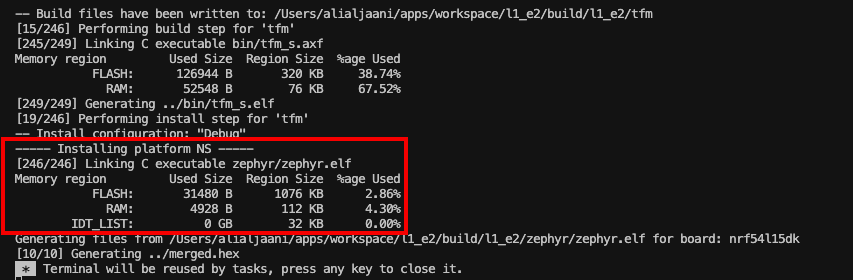

A successful build is indicated by displaying the application’s memory usage, as shown in the screenshot above.
A key component in the build process is west
, which is a core command-line utility in nRF Connect SDK/Zephyr.
west
provides several services like repository management, building applications, and flashing, and is internally invoked by nRF Connect for VS Code. You can also issue these commands manually in the command line prompt if you prefer to work in the terminal. Type west help

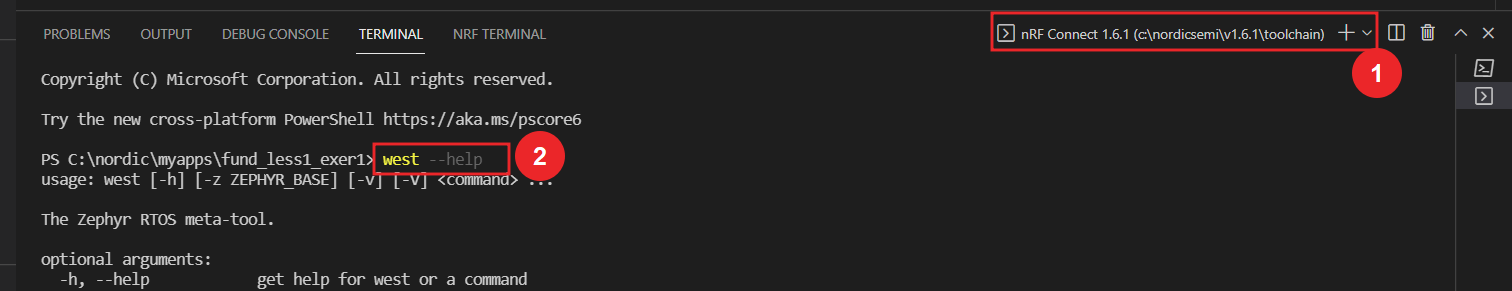

in the Terminal Panel if you are interested in learning how to use the command-line interface with the nRF Connect SDK.
Alternatively, you can checkout this short video or read the documentation of west
available here . Make sure to select nRF Connect Terminal, as shown in the screenshot below as this is the terminal where the toolchain is sourced.
If you switch to the Explorer in VS Code or browse to the application directory, you will notice that there is a new sub-directory created from the build process called build
. This folder contains the build output including the binary file that we will flash on the board in the next step.
5. Make sure that your development kit is connected to your computer and that it is switched on. It should be listed in the Connected Devices View in the nRF Connect for VS Code extension.
If you are using a Thingy:53, Thingy:91 X or Thingy:91 (which doesn’t have an onboard debugger), the flash procedure is different, and the device will not show up under Connected Devices View in the nRF Connect for VS Code extension. Skip steps 5 and 6, and please go through the flash procedure for the Thingy:53 here and for the Thingy:91 X or Thingy:91 here.

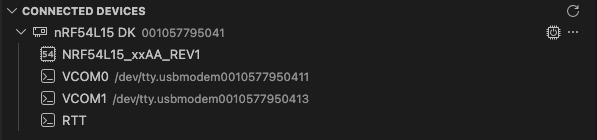

If you don’t see your board listed, press the Refresh Connected Devices icon in the Connected Devices View.

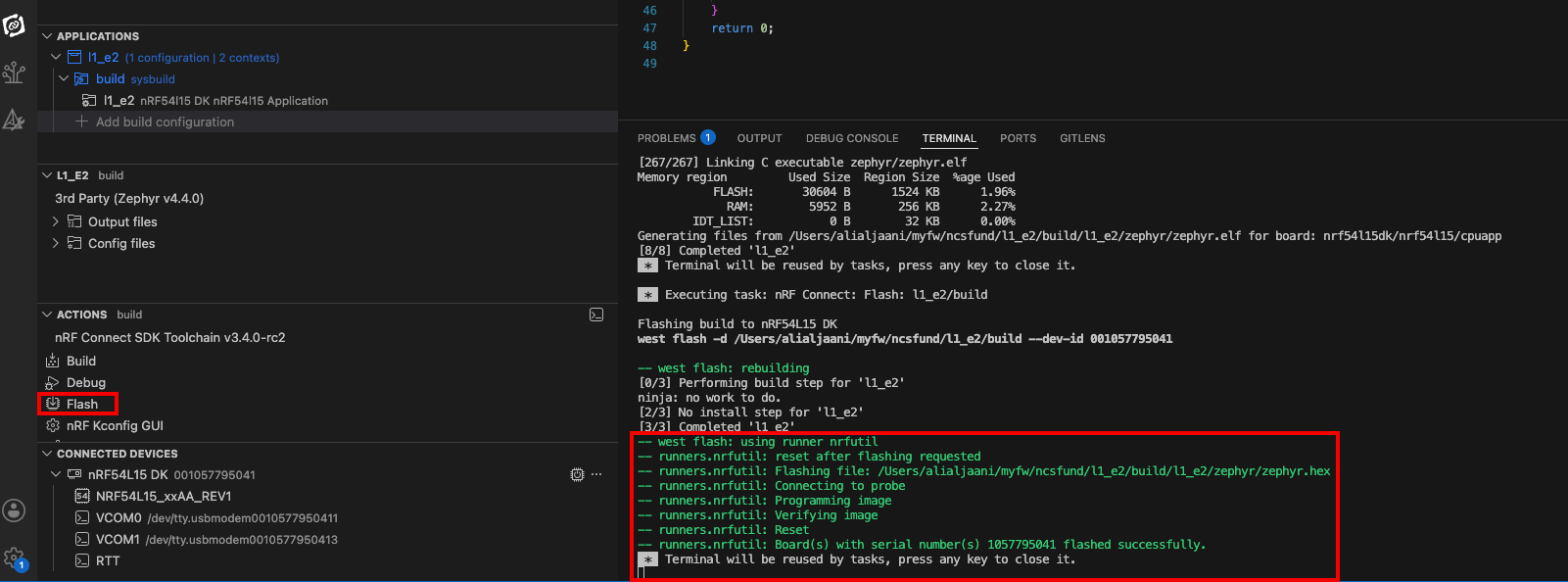

6. From the Actions View, click Flash to flash the application to the board. You can open the Terminal Panel to see the progress of the flashing, as shown below.
The difference between Flash and Erase And Flash To Board is that the latter erases the whole device, including all data the application has saved.
For example, if the device is added to a mesh network, Erase And Flash To Board will make the device forget this.
LED1 on your board should be blinking now in one second intervals.
On the nRF54L15 DK, the board’s LEDs are labeled with PCB labels (PCB silkscreen) that start with 0 (LED0-LED3). In previous-generation development kits, the indexing starts with 1 (LED1-LED4). So, running the above sample on the nRF54L15 DK will make LED0 blink.
7. Just for the sake of this demonstration, let’s change the LED blink rate.
Locate the main.c
file in Source Files->Applications or through the Explorer View of Visual Studio Code. On line 11, change the value of the SLEEP_TIME_MS
from 1000 to 100. This will change the interval at which the LED is blinking.
#define SLEEP_TIME_MS 100
C8. Rebuild and re-flash the application on your board. You should observe that the LED is now blinking at a higher frequency.
In Lesson 2, we will take an in-depth look at the source code of this application to understand how it works.
In this exercise, we will program a simple application based on the blinky
sample to toggle an LED on our board. Again, any supported Nordic Semiconductor development board will work (nRF52, nRF53,nRF70, nRF91 Series). The idea is to make sure that all the tools needed to build and flash a sample are set up correctly. The focus is to learn how to create an application from a template “Copy a sample”, build the application, and flash it on a Nordic-powered board.
Basically, we will walk you through the three bullet points below:
1. Create a folder close to your root directory that will hold all the exercises that we will be working on throughout this course.
We will create that folder on the C drive in C:\nordic\myapps.
Avoid storing your applications in locations with long paths, as the build system might fail on some operating systems if the application path is too long.
2. In VS Code, click on the nRF Connect Extension icon. In the Welcome View, click on Create a new application.
3. In the Create New Application, select Copy a sample
You will be presented with two options: Create a blank application will create a blank application with an empty main()
function. While the Copy a sample will present you all the templates “samples” that come from the different modules in nRF Connect SDK and enable you to create an application based on a template.
The SDK contains a rich set of templates. In the context of templates, Samples are simple and showcase a single feature or library (e.g. SHA256 sample, UART sample, PWM sample, blinky sample, etc..), while Applications are complex and include a variety of libraries to implement a specific use case (e.g. Asset tracker application, Keyboard application, Mouse application).
3.1 Type blinky in the search field and select the Blinky Sample. The Blinky sample blinks LED1 on your board indefinitely.
We will base our first application on the Blinky sample. The Blinky sample comes from the Zephyr module in nRF Connect SDK. That is why you see the zephyr
name in the sample path: zephyr\samples\basic\blinky
.
Through the icons , we can access the in-tree sample (inside the SDK installation directory) , online documentation of the sample, and the github of the sample respectively.
Through the icons , we can filter samples/applications based on the module they come from (nrf, zephyr ,etc..) and supported hardware. Note that the supported hardware is not always accurate as it relies on samples explicitly listing the supported hardware, which is not the case for all samples.
3.2 Input the full path for where you want the application to be stored.
1. Select where you want to store your application. Input the directory you created in step 1 (for example: C:\nordic\myapps
).
2. Name your application fund_less1_exer2
. This is the naming convention we will use for exercises throughout this course. Note that this will create a folder for your application called fund_less1_exer2
.
When you have input the full path, press enter.
VS Code will ask if you want to open the application in the same VS Code instance or open a new VS Code instance. Select Open to open the application in the same VS Code instance.
This will make a copy of the template selected “Blinky sample”, store it in the application directory you specified, and add an unbuilt application to VS Code as shown below:
nRF Connect for VS Code might show some error squiggles of headers files not found for an unbuilt application. Please ignore these error squiggles at this stage. These errors will automatically be resolved once you add and build a configuration (next step).
4. Add a build configuration.
One of the many advantages of the nRF Connect SDK is the high decoupling between an application source code and the software configuration/hardware description, making it extremely easy to switch the build for a new hardware or software configuration.
This step will specify which development board or custom board (hardware) we want to build the application for. We will also select the software configuration (*.conf
and possible overlays) to be used in the build.
In the APPLICATIONS view, under the application name, click on Add Build Configuration.
This will open the Add Build Configuration window shown below:
4.1. Using the board ID, choose the board you want to flash your application to. See the table below for an overview of board ID’s for Nordic devices.
Device | Board ID |
---|---|
nRF5340 DK | nrf5340dk_nrf5340_cpuapp_ns |
nRF52840 DK | nrf52840dk_nrf52840 |
nRF52833 DK | nrf52833dk_nrf52833 |
nRF52 DK | nrf52dk_nrf52832 |
nRF9160 DK | nrf9160dk_nrf9160_ns |
nRF9161 DK | nrf9161dk_nrf9161_ns |
nRF9151 DK | nrf9151dk_nrf9151_ns |
Thingy:91* | thingy91_nrf9160_ns |
Thingy:53* | thingy53_nrf5340_cpuapp_ns |
nRF7002 DK* | nrf7002dk_nrf5340_cpuapp_ns |
The nRF7002 DK, nRF9161 DK are supported in nRF Connect SDK v2.5.0 and higher.
The nRF9151 DK is supported in nRF Connect SDK v2.6.0 and higher.
In the screenshot, we chose the nRF52833DK by specifying its ID, nrf52833dk_nrf52833
. You can also create your own board and define your own board ID, and for that, you select the Custom board option. However, this is beyond the scope of this course.
4.2. The board revision is usually written down on a sticker on the back of the board. However, this field is optional and only applicable if the board has multiple revisions (Like the case of the nRF9160 DK), and by setting it to default, the build system selects a revision version.
4.3. Depending on the template you chose in Step 3, you will be presented with at least one application configuration prj.conf
. Some templates contain more than one application configuration file (eg: prj.conf
, prj_minimal.conf
, prj_cdc.conf
). These different configurations, if found in the template, are explained in the template documentation. The blinky template has only one option.
4.4. The Kconfig fragments field will list the Kconfig Fragments available in the template or added to the application folder. These are modifiers to the application configuration file (covered in Lesson 3). The blinky template has none.
4.5. The Devicetree Overlay field will list the Devicetree overlays that are available in the template or have been added to the application folder. These are modifiers to your hardware description (covered in Lesson 3). The blinky template has none.
4.6. The Extra CMake arguments field allows you to pass arguments to the build system if needed. We will leave that blank for this demo.
4.7. The Build directory name field gives you the option to manually name the build directory where the final binary files and temporary build files will be stored. We will leave this to be the default name specified by the tool, which is build
or build_1
if you have already built one application before.
4.8. Optimization Level. We have four options here.
CONFIG_DEBUG_THREAD_INFO="y"
and CONFIG_DEBUG_OPTIMIZATIONS="y"
CONFIG_SPEED_OPTIMIZATIONS="y"
CONFIG_SIZE_OPTIMIZATIONS="y"
In this exercise, we will leave the option to Use project default. However, it’s important to remember to use Optimize for debugging (-Og) if you plan to debug your application.
Leave the Build after generating configuration option enabled to trigger the build process after clicking the Build Configuration button.
4.9. Click the Build Configuration button to create the configuration and initiate the build process.
The build process will take some time to finish. Open the nRF Connect Terminal (View->Terminal) to see the progress of the build.
A successful build is indicated by displaying the application’s memory usage, as shown in the screenshot above.
A key component in the build process is west
, which is a core command-line utility in nRF Connect SDK/Zephyr.
west
provides several services like repository management, building applications, and flashing, and is internally invoked by nRF Connect for VS Code. You can also issue these commands manually in the command line prompt if you prefer to work in the terminal. Type west help
in the Terminal Panel if you are interested in learning how to use the command-line interface with the nRF Connect SDK.
Alternatively, you can checkout this short video or read the documentation of west
available here . Make sure to select nRF Connect Terminal, as shown in the screenshot below as this is the terminal where the toolchain is sourced.
If you switch to the Explorer in VS Code or browse to the application directory, you will notice that there is a new subdirectory created from the build process called build
. This folder contains the build output including the binary file that we will flash on the board in the next step.
5. Make sure that your development kit is connected to your computer and that it is switched on. It should be listed in the Connected Devices View in the nRF Connect for VS Code extension.
If you are using a Thingy:53 or a Thingy:91 (which doesn’t have an onboard debugger), the flash procedure is different, and the device will not show up under Connected Devices View in the nRF Connect for VS Code extension. Skip steps 5 and 6, and please go through the flash procedure for the Thingy:53 here and for the Thingy:91 here.
If you don’t see your board listed, press the Refresh Connected Devices icon in the Connected Devices View.
6. From the Actions View, click Flash to flash the application to the board. You can open the Terminal Panel to see the progress of the flashing, as shown below.
If you get an error message during flashing, similar to the screenshot below, you will need to recover your device:
Recovering a device can be done using the command line interface by:
1. Open nRF Connect Terminal
2. Change directory to your application root directory (cd
)
3. Type west flash --recover
and hit enter
You need to do the steps above only one time. After that, you can use the Flash functionality as usual.
The difference between Flash and Erase And Flash To Board is that the latter erases the whole device, including all data the application has saved.
For example, if the device is added to a mesh network, Erase And Flash To Board will make the device forget this.
LED1 on your board should be blinking now in one second intervals.
7. Just for the sake of this demonstration, let’s change the LED blink rate.
Locate the main.c
file in Source Files->Applications or through the Explorer View of Visual Studio Code. On line 11, change the value of the SLEEP_TIME_MS
from 1000 to 100. This will change the interval at which the LED is blinking.
#define SLEEP_TIME_MS 100
C8. Rebuild and re-flash the application on your board. You should observe that the LED is now blinking at a higher frequency.
In Lesson 2, we will take an in-depth look at the source code of this application to understand how it works.
In this exercise, we will program a simple application based on the blinky
template to toggle an LED on our board. Again, any supported Nordic Semiconductor development board will work (nRF52, nRF53, nRF91 Series). The idea is to make sure that all the tools needed to build and flash a sample are set up correctly. The focus is to learn how to create an application from a template, build the application, and flash it on a Nordic-powered board.
Basically, we will walk you through the three short videos below to:
Either watch the videos or follow the steps below.
1. Create a folder close to your root directly that will hold all the exercises that we will be working on throughout this course.
We will create that folder on the C drive in C:\nordic\myapps.
2. In VS Code, click on the nRF Connect Extension. In the Welcome View, click on Create a new application.
3. In the New Application View, do the following:
3.1. Select a Freestanding application. This will link and use a version of the nRF Connect SDK that you have already installed on your machine.
The other type of application is the Workspace application, which will have a dedicated SDK instance for each application. Workspace applications are out of the scope of this course.
3.2. Choose the directory to store your application folder, nordic\myapps.
3.3. Name your application fund_less1_exer2
as this is the naming convention that we will use for exercises throughout this course. Note that this will create a folder for your application called fund_less1_exer2
.
3.4. Choose the version of nRF Connect SDK to compile and build your application with. The nRF Connect Toolchain should match the version of the SDK.
The list contains versions already installed on your machine. If you want to install a version that is not already present on your machine, press on the Install button. This invokes the Toolchain Manager, where you can download different versions of the SDK.
3.5. Chose the template to base your application on. This will make a copy of the template and store it in the directory you specified in step 3.2 and name it as you specified in step 3.3.
The SDK contains a rich set of templates. In the context of templates, Samples are simple and showcase a single feature or library (e.g. SHA256 sample, UART sample, PWM sample, blinky sample, etc..), while Applications are complex and include a variety of libraries to implement a specific use case (e.g. Asset tracker application, Keyboard application, Mouse application).
We will base our first application on the blinky
sample. Type blinky
in the Application template field and choose the one that says zephyr\samples\basic\blinky
. This is the relative path directly within the nRF Connect SDK where the template is stored.
The Browse… button in the Application template field allows you to filter templates by several criteria including Wireless Communication Protocol, Device (SoC or SiP), and more (crypto, drivers, etc.). It also shows documentation for the templates.
3.6. Finally, click on the Create Application button.
This will add an unbuilt application to VS Code as shown below:
4. Add a build configuration.
One of the many advantages of the nRF Connect SDK is the high decoupling between an application source code and the software configuration/hardware description, making it extremely easy to switch the build for a new hardware or software configuration.
In this step, we will specify which development board or custom board (hardware) we want to build the application for. We will also select the software configuration (*.conf
and possible overlays) to be used in the build.
Hover over the application name and click on the small Add Build Configuration icon.
This will open the Add Build Configuration View shown below:
4.1. Using the board ID, choose the board you want to flash your application to. See the table below for an overview of board ID’s for Nordic devices.
Device | Board ID |
---|---|
nRF5340 DK | nrf5340dk_nrf5340_cpuapp_ns |
nRF52840 DK | nrf52840dk_nrf52840 |
nRF52833 DK | nrf52833dk_nrf52833 |
nRF52 DK | nrf52dk_nrf52832 |
nRF9160 DK | nrf9160dk_nrf9160_ns |
Thingy:91* | thingy91_nrf9160_ns |
In the screenshot, we select the nRF52833 DK by specifying its ID, nrf52833dk_nrf52833
. You can also create your own board and define your own board ID, however this is beyond the scope of this course.
4.2. Depending on the template you chose in step 3, you will be presented with at least one application configuration prj.conf
. Some templates contain more than one application configuration file (eg: prj.conf
, prj_minimal.conf
, prj_cdc.conf
). These different configurations, if found in the template, are explained in the template documentation. The blinky template has only one option.
4.3. The Kconfig fragments field will list the Kconfig overlays (aka Kconfig Fragments) that are available in the template or have been added in the application folder. These are modifiers to the application configuration file (covered in Lesson 3). The blinky template has none.
4.4. The Extra CMake arguments field allows you to pass arguments to the build system if needed. We will leave that blank for this demo.
4.5. The Build directory name field gives you the option to manually name the build directory where the final binary files and temporary build files will be stored. We will leave this to be the default name specified by the tool, which is build
.
4.6. Leave the Build after generating configuration option enabled to trigger the build process after clicking on the Build Configuration button.
4.7. Select the Enable debug options to enable debugging of the application.
4.8. Click on the Build Configuration button to create the configuration and initiate the build process.
The build process will take some time to finish. Open the Terminal (View->Terminal) to see the progress of the build.
A successful build is indicated by displaying the memory usage of the application as shown in the screenshot above.
A key component in the build process is west
, which is a core command-line utility in nRF Connect SDK/Zephyr.
west
provides several services like repository management, building applications, and flashing, and is internally invoked by nRF Connect for VS Code. You can also issue these commands manually in the command line prompt if you prefer to work in the terminal. Type west help
in the Terminal Panel if you are interested in learning how to use the command-line interface with the nRF Connect SDK.
Alternatively, you can checkout this short video or read the documentation of west
available here . Make sure to select nRF Connect Terminal, as shown in the screenshot below as this is the terminal where the toolchain is sourced.
If you switch to the Explorer in VS Code or browse to the application directory, you will notice that there is a new subdirectory created from the build process called build
. This folder contains the build output including the binary file that we will flash on the board in the next step.
5. Make sure that your development kit is connected to your computer and that it is switched on. It should be listed in the Connected Devices View in the nRF Connect for VS Code extension.
If you don’t see your board listed, press on the Refresh Connected Devices icon in the Connected Devices View.
6. From the Actions View, click Flash to flash the application to the board. You can open the Terminal Panel to see the progress of the flashing as shown below.
The difference between Flash and Erase And Flash To Board is that the latter erases the whole device, including all data the application has saved.
For example, if the device is added to a mesh network, Erase And Flash To Board will make the device forget this.
LED1 on your board should be blinking now in 1-second intervals.
If you are using a Thingy:91, please see the flash procedure here.
7. Just for the sake of this demonstration, let’s change the LED blink rate.
Locate the main.c
file in Source Files->Applications or through the Explorer View of Visual Studio Code. On line 11, change the value of the SLEEP_TIME_MS
from 1000 to 100. This will change the interval at which the LED is blinking.
#define SLEEP_TIME_MS 100
8. Rebuild and re-flash the application on your board. You should observe that the LED is now blinking at a higher frequency.
In Lesson 2, we will take an in-depth look at the source code of this application to understand how it works.
